InGaAs Geiger mode avalanche photodiodes
The InGaAs Single-Photon Avalanche Diode (SPAD) is a specialized device designed for single-photon detection in the short-wave near-infrared (NIR) range. It meets the technical requirements for high-efficiency and low-noise single-photon detection in applications such as quantum secure communication and weak light detection, enabling precise sensing of single photons within the 0.9–1.7 μm wavelength band.
Features
- Spectral response range of 0.9~1.7μm
- High-efficiency and low dark count rate
- 3 pin TO46、6 pin TO08、 10 pin refrigeration butterfly device
Application Areas
- Low Light Detection
- Quantum Secure Communication
- Biomedical
- Laser ranging

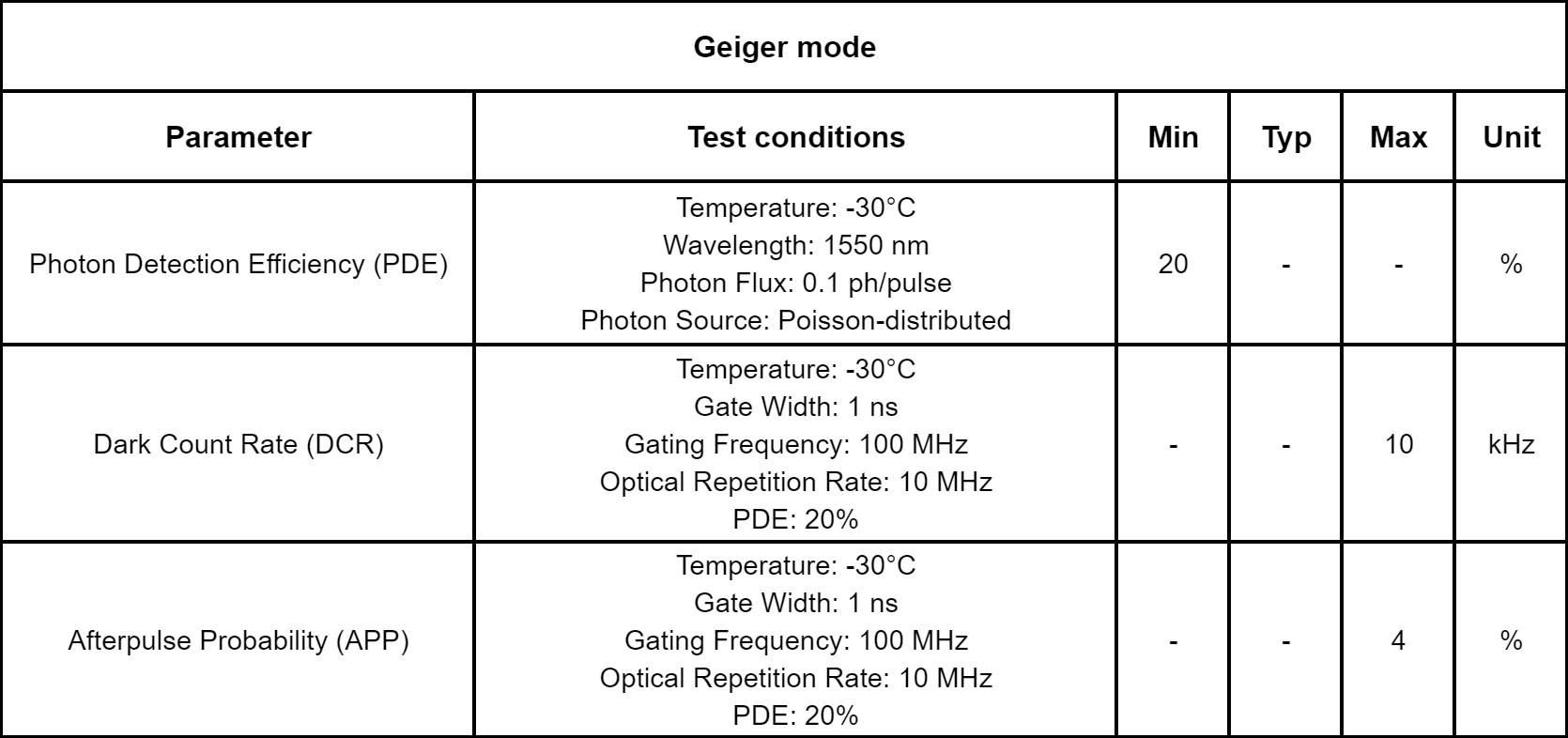

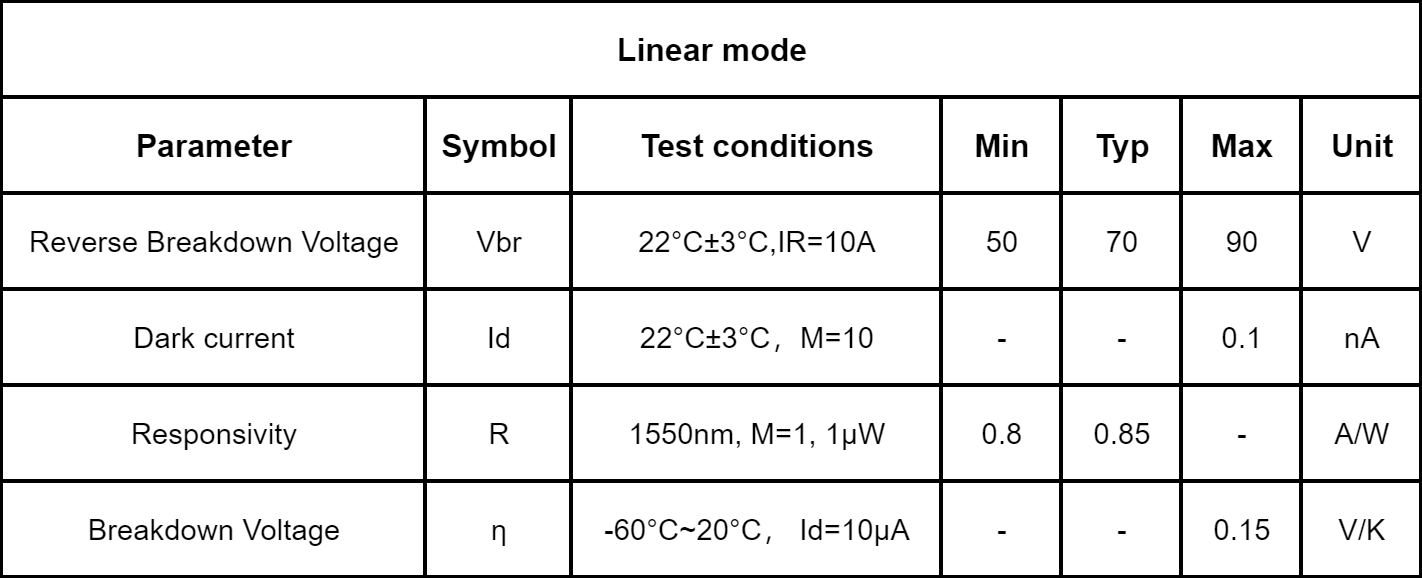

Characteristics
